What Is Nylon: A Complete Guide to the Versatile Synthetic Fabric

From the iconic “nylon stockings” of the 1930s to today’s high-performance backpacks, nylon has woven itself into virtually every corner of modern life. Imagine a material that’s stronger than steel on a weight-for-weight basis, yet supple enough to fold into the smallest pouch—and that’s just a glimpse of nylon’s superpowers. Its remarkable journey from lab bench to global phenomenon reshaped industries from fashion to aerospace.

Nylon is a synthetic polyamide fiber first developed by DuPont in 1935. Celebrated for its high tensile strength, abrasion resistance, moisture-wicking, and ease of care, nylon comes in variants like nylon 6 and 6,6, ripstop, and ballistic weaves. Its adaptability—via finishes such as water-repellent coatings or recycled content—makes nylon the go-to choice for durable bags, activewear, and technical textiles.

But nylon is more than just a wonder fiber—it’s a story of innovation, adaptation, and the constant quest for better performance. In this in-depth guide, we’ll explore what nylon is, which types power your favorite bags, its key properties, how it’s made, its pros & cons, care tips, and sustainability considerations. Stay tuned, because at the end, you’ll discover how Szoneier’s 18-year expertise can help you customize the perfect nylon solution for your brand.

What Is Nylon and How Was It Developed?

Nylon is a synthetic polyamide fiber first created by DuPont chemist Wallace Carothers in 1935. Developed through the condensation polymerization of hexamethylene diamine and adipic acid (nylon 6,6) or the ring-opening polymerization of caprolactam (nylon 6), it debuted commercially in 1939 as “nylons” for women’s stockings. Its exceptional strength, elasticity, and moisture resistance quickly led to wartime parachutes and, post-war, to a vast array of durable textile applications.

The Quest for a Synthetic Silk Substitute

In the early 1920s, silk shortages—due to geopolitical turmoil and limited supply chains—plagued both the textile and parachute industries. DuPont, under the leadership of chemist Wallace H. Carothers, launched Project X to synthesize a fiber matching silk’s strength and luster but with greater durability and easier production. Carothers and his team experimented with various polyamides, seeking a polymer that could be spun into a fine, lustrous fiber.

Polymer Chemistry Fundamentals

• Polyamide Formation: Nylon fibers form via condensation polymerization, where each amide bond (–CO–NH–) forms by eliminating a small molecule—water in nylon 6,6 or ring-opened caprolactam in nylon 6.
• Nylon 6,6 Synthesis:
  1. Monomers: Hexamethylene diamine (HMD) and adipic acid.
  2. Reaction: Under heat (~260 °C) and reduced pressure, equal molar HMD and adipic acid react; water vapor drives off, lengthening polymer chains.
• Nylon 6 Synthesis:
  1. Monomer: ε-Caprolactam.
  2. Reaction: Ring-opening polymerization at ~280 °C yields long-chain nylon 6 with slightly lower melting point but simpler feedstock.
  Condensation (nylon 6,6): n H₂N–(CH₂)₆–NH₂ + n HOOC–(CH₂)₄–COOH → –[NH–(CH₂)₆–NH–CO–(CH₂)₄–CO]–ₙ + 2n H₂O Ring-Opening (nylon 6): n ε-caprolactam → –[NH–(CH₂)₅–CO]–ₙ

From Polymer to Filament

Once synthesized, molten polymer is extruded through spinnerets—tiny holes that shape continuous filaments. Filaments cool in air or water baths, then undergo drawing (mechanical stretching) to align molecular chains, dramatically increasing tensile strength and elasticity. Finally, heat setting locks in the molecular orientation, ensuring dimensional stability and resistance to shrinkage.

Commercial Debut and Early Applications

• 1938–1939: DuPont unveiled “nylon” at the New York World’s Fair. Within days, nylon stockings launched, sparking consumer mania.
• Wartime Pivot: WWII converted nylon production to military uses—parachutes, ropes, tire cords—capitalizing on its 40% greater strength than silk and superior resilience under dynamic loads.

Post-War Expansion and Variant Development

• Consumer Goods: After 1945, nylon permeated apparel, carpets, and upholstery.
• Technical Textiles: Introduction of nylon 6,6/nylon 6 copolymers, high-tenacity grades, and textured yarns addressed specific needs—ripstop fabrics for backpacks, ballistic weaves for luggage, and spandex blends for stretch garments.
• Innovation Pipeline: Subsequent decades saw improved UV-resistant finishes, hydrolysis-resistant variants for humid climates, and enhanced dyeability methods.

Impact and Legacy

Nylon’s invention catalyzed the modern polymer era, paving the way for polyester, polypropylene, and aramid fibers. Its versatility—from consumer fashion to industrial reinforcement—demonstrates how a single molecular innovation can ripple across economies and cultures. Today, nylon remains a cornerstone of high-performance bags, combining its original attributes—strength, elasticity, moisture management—with modern enhancements like recycled content and advanced coatings.

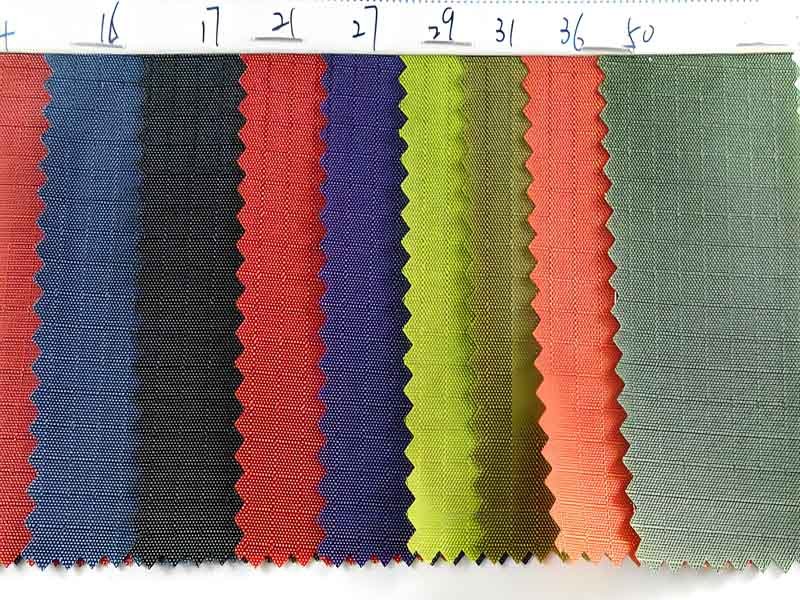

What Are the Various Types of Nylon?

Nylon comes in a family of related polyamide polymers, each with distinct molecular structures—and when woven or knit, these polymers yield fabrics with different performance profiles. Here are the most common types:

1. Nylon 6,6

• Chemistry: Made from hexamethylenediamine and adipic acid.
• Properties: Highest melting point (\~265 °C), excellent tensile strength, abrasion resistance, and dimensional stability.
• Applications: Heavy-duty luggage, ballistic (Cordura®) fabrics, industrial belts, and high-temperature engineering components.

2. Nylon 6

• Chemistry: Polymerized from caprolactam.
• Properties: Slightly lower melting point (\~220 °C) than 6,6 but easier to process, good toughness, and elasticity.
• Applications: Apparel, hosiery, carpets, parachutes, light- to medium-duty backpacks.

3. Nylon 6,10 & 6,12

• Chemistry: Variations using larger dicarboxylic acids (sebacic or dodecanedioic acid).
• Properties: Lower moisture absorption and better UV resistance than 6 or 6,6, at the cost of slightly reduced strength.
• Applications: Outdoor textiles, marine ropes, and electrical insulation where moisture repellency is critical.

4. Nylon 11 & 12

• Chemistry: Derived from castor oil (11) or laurolactam (12), making them partially bio-based.
• Properties: Exceptional chemical and hydrolysis resistance, very low water absorption (\~1–2%), and high flexibility at low temperatures.
• Applications: Fuel and hydraulic hoses, ski boots, high-performance sportswear, and inflatables.

5. Textile Constructions & Finishes

• Ballistic Nylon (e.g., Cordura® 1000D): Woven from nylon 6,6 filament yarns at very high denier (1,000+), offering extreme abrasion resistance.
• Ripstop Nylon: A square-grid reinforcement weave (often 70D or 210D) that prevents small tears from propagating.
• Monofilament/Tricot Knits: Single-strand filaments knit into fine-gauge, highly breathable fabrics used in linings and activewear.
• Coated / Laminated Nylon (PU/TPU): Adds water- and windproofness—common in rain jackets, dry bags, and technical luggage.

6. Recycled & Bio-Based Nylons

• Recycled Nylon (e.g., Econyl®): Made from post-consumer waste like fishing nets and carpet scraps; offers up to 90% reduction in carbon footprint.
• Bio-Nylon: Produced partly from renewable feedstocks (castor oil), reducing reliance on petrochemicals.

Choosing the Right Nylon:

• For maximum durability and abrasion resistance, select high-denier Nylon 6,6 bal­lis­tic.
• For lightweight, flexible applications, Nylon 6 or 6,12 ripstop works well.
• For chemical or moisture-critical uses, Nylon 11/12 or coated nylons are best.
• For sustainable initiatives, explore recycled or bio-based nylon grades.

Whether you need rock-solid toughness for outdoor gear or silky smooth stretch for performance apparel, there’s a nylon grade—and fabric construction—that fits your exact requirements.

Which Types of Nylon Are Commonly Used in Bag Manufacturing?

Bag makers typically choose between nylon 6 and nylon 6,6 for their core fibers; then select specific constructions—210D or 420D ripstop nylons for light-to-medium packs, 500D/1050D ballistic nylons for heavy-duty gear, and coated taffetas or oxford weaves for water resistance. Each variant balances strength, weight, abrasion resistance, and hand feel to meet the demands of everything from commuter totes to expedition backpacks.

Choosing the right nylon type impacts bag performance, aesthetics, and cost:

1. Nylon 6 vs Nylon 6,6:

Nylon 6,6

• Chemistry: Polycondensation of hexamethylene diamine and adipic acid.
• Characteristics: Higher crystallinity, melting point (~265 °C), slightly superior abrasion and heat resistance.
• Applications: Technical packs, military-grade luggage, and gear requiring maximum tear resistance.

Nylon 6

• Chemistry: Ring-opening polymerization of caprolactam.
• Characteristics: Lower melting point (~220 °C), more flexible, easier to dye.
• Applications: Everyday backpacks, fashion totes, and light-to-medium load bags where drape and color vibrancy matter.

2. Denier & Weave Variants: From Ripstop to Ballistic

• Denier (D): Yarn linear density—higher deniers (e.g., 1050D) mean thicker, heavier yarns, boosting durability at the cost of weight.
• Plain Weave: Simple over-under pattern for smooth surface—common in linings and fashion totes.
• Twill Weave: Diagonal rib pattern enhances drape and abrasion resistance—found in high-end backpacks.

Fabric Type	Denier Range	Weave/Construction	Key Benefits	Typical Uses
Ripstop Nylon	210–420 D	Plain ripstop	Tear-stop grid prevents small rips from growing	Lightweight daypacks, rain covers
Oxford Nylon Taffeta	210–600 D	Plain weave	Smooth finish, easy printability	Fashion bags, accessories
Ballistic Nylon	500–1050 D	Tight plain weave	Exceptional abrasion and tear resistance	Tool bags, luggage bottoms, belts
Cordura® Nylon	1000–1680 D	High-tenacity	Trademarked for extreme durability	High-end backpacks, military kits
Knit Nylon (Tricot)	110–200 g/m²	Warp knit	Soft hand, stretch for sleeves or pockets	Sleeve inserts, linings, pouches

• 210D Ripstop: Ultra-light, highly packable, but less abrasion-resistant—ideal for ultralight gear.
• 420D Ripstop: Sweet spot of weight vs. durability for commuter and travel packs.
• 500D–1050D Ballistic: Developed for WWII bombers; now used wherever maximum toughness is required.
• Oxford Taffeta: Often PVC-coated for inexpensive, smooth-looking rain bags or printed promotional totes.
• Knits & Mesh: Provide stretch or airflow but require careful bonding to nylon for structural integrity.

3. Coatings & Finishes: Enhancing Performance

• PU/PVC Coating: Adds waterproofing and abrasion resistance, at the cost of breathability and additional weight (5–15% increase).
• DWR Treatments: Eco-friendly durable water repellent sprays bead water off without altering hand feel significantly.
• Silicone or Teflon® Finishes: Provide slick, stain-resistant surfaces—popular for high-end gear and cooler bags.

4. Trade-Offs & Brand Positioning

• Weight vs Durability: Light ripstop fabrics attract ultralight and fashion brands; heavy ballistic and Cordura feed premium and tactical markets.
• Hand Feel & Aesthetics: Oxford taffetas and knits offer a softer, fashion-forward touch, whereas ballistic surfaces communicate rugged durability.
• Cost Implications: Denser weaves and specialty finishes can more than double fabric cost—from $2–$4/m for 210D to $6–$12/m for 1050D ballistic or Cordura.

What Are the Key Properties of Nylon Fabric?

Nylon offers high tensile strength (8–12 MPa), excellent abrasion resistance (20,000+ Martindale cycles for 420D ripstop), low moisture absorption (~4%), and quick-dry performance. It stretches 20–30% under load with >90% rebound, and its smooth surface resists snags. Thermal stability (melting point 220–265 °C) and the ability to accept coatings and finishes—like DWR or PU—round out a profile that makes nylon both durable and versatile for bag applications.

1. Tensile Strength & Tear Resistance

• Molecular Alignment: Polymer chains in nylon are highly crystalline after the drawing process, giving a tensile strength between 8–12 MPa, significantly higher than most natural fibers.
• Fabric Tests: In Martindale abrasion tests, 420D ripstop nylon endures over 20,000 cycles, while 1050D ballistic nylon often exceeds 50,000 cycles before visible wear. Tear resistance follows suit—nylon tears require 3–5 times more force than those in polyester of comparable weight.

2. Moisture Management & Quick-Dry Behavior

• Absorption: Nylon absorbs about 4% of its weight in water—more than polyester (<1%) but much less than cotton (~7–8%).
• Evaporation Rate: Even untreated, nylon fabrics shed water rapidly, drying within 1–2 hours under standard indoor airflow. Durable water-repellent (DWR) finishes further enhance beading, keeping surfaces dry.

3. Elasticity & Flex-Fatigue Resistance

• Elongation: Typical elongation at break ranges from 20–30%, allowing fabrics to flex under load (e.g., cinch straps, expandable pockets).
• Recovery: After 100 cycles at 50% stretch, nylon rebounds over 90% to its original length, maintaining shape in dynamic applications like pack panels or sleeve inserts.

4. Thermal Stability & Insulation

Melting Points:

• Nylon 6: ~220 °C
• Nylon 6,6: ~265 °C

Heat Resistance: These high melting points allow nylon to withstand heat-setting processes and hot-air sealing for coated finishes. Its dense weave also imparts moderate insulation—trapping air in bag walls to protect contents from temperature fluctuations.

5. Surface Characteristics & Finish Compatibility

• Smooth Hand: Nylon’s slick surface resists snagging and enables films or coatings to adhere evenly.
• Coating Adhesion: PU, PVC, or silicone coatings bond well to nylon, adding waterproofing or abrasion resistance without compromising flexibility.
• Printability: Digital and screen printing yield vibrant, durable designs on nylon’s receptive surface.

6. UV Resistance & Aging

• Intrinsic Sensitivity: Unprotected nylon degrades under UV exposure, losing tensile strength over time.
• Protective Treatments: UV-stable finishes can extend outdoor lifespan from 200 hours to over 1,000 hours of simulated sunlight, preserving both strength and color.

7. Care & Chemical Resistance

• Cleaning: Nylon tolerates gentle machine washing (cold water) and line-drying. Avoid bleach to prevent fiber degradation.
• Chemical Tolerance: Resistant to oils, greases, and many solvents—making it suitable for tool bags and industrial liners. However, strong acids or bases can hydrolyze amide bonds, so pH-neutral detergents are recommended.

8. Balancing Properties for Bag Design

Property	210D Ripstop	420D Ripstop	1050D Ballistic
Tensile Strength (MPa)	8–10	10–12	12–14
Abrasion Cycles	10,000	20,000	50,000+
Moisture Absorption	~4%	~4%	~4%
Elongation (%)	20–25	25–30	15–20
UV Stability (hrs)	~200	~400	~600

How Is Nylon Fabric Produced and Finished?

Nylon is produced by polymerizing caprolactam (nylon 6) or hexamethylene diamine and adipic acid (nylon 6,6), then melt-spun into filaments, drawn to align polymers, and heat-set. Filaments are woven or knitted into fabrics and treated with finishes—PU/PVC coatings for waterproofing, durable water repellent (DWR) sprays, UV stabilizers, and flame-retardant or antimicrobial finishes—plus calendaring and heat-setting to lock in dimensions and hand feel.

1. Polymerization:

Nylon 6,6 Synthesis:

• Monomers hexamethylene diamine and adipic acid are combined under high heat (~260 °C) in a condensation reaction.
• Water is released with each amide bond formed, extending the chain until the desired molecular weight is reached.

Nylon 6 Synthesis:

• Involves ring-opening polymerization of ε-caprolactam at ~280 °C, producing long polyamide chains in a single monomer step.
• Compared to nylon 6,6, nylon 6 has slightly lower melting point (~220 °C) and greater flexibility.

These polymerization methods yield pellets—the raw feedstock for spinning.

2. Melt Spinning and Filament Drawing

Melt Spinning:

• Pellets are melted and extruded through a spinneret (a plate with hundreds of micron-scale holes) into ambient air or a water bath, forming continuous filaments.

Drawing (Orientation):

• Filaments are mechanically stretched (drawn) by 2–4× their original length.
• This aligns molecular chains, dramatically boosting tensile strength, abrasion resistance, and elasticity.

Heat Setting: Filaments are then heated under tension to “lock in” orientation, ensuring dimensional stability and resistance to shrinkage when washed or heated later.

3. Yarn Texturizing and Preparation

False-Twist Texturing (for knits): Filaments are twisted, heated, and untwisted to create bulk and elasticity, producing “stretch nylon” ideal for linings and pouches.

Twisting & Plying: Multiple filaments may be twisted together into multi-end yarns, improving cohesion and abrasion resistance for tough bag panels.

4. Fabric Formation: Weaving vs. Knitting

Weaving:

• Plain Weave: Simple over-under structure—lightweight nylon taffetas and oxfords (210–600 D).
• Twill Weave: Diagonal ribs add drape and abrasion resistance—found in mid-range backpacks.

Knitting:

• Warp Knitting (Tricot): Creates soft, slightly stretchy fabrics used as linings or sleeve panels.
• Weft Knitting: Used for decorative or functional mesh pockets.

Each construction balances weight, strength, hand feel, and drape.

5. Finishing Treatments: Performance Tailoring

Calendering & Heat-Setting: Fabric passes through heated rollers to smooth surface, set width/length, and enhance hand feel.

Coatings & Laminations:

• PU (Polyurethane) Coating: Applied to the back for waterproofing while retaining flexibility.
• PVC Coating: Heavier, more durable barrier—used in cooler bags or heavy-duty decks.
• Laminated Textiles: Nylon bonded to spandex or polyester knits for stretch panels.

Surface Finishes:

• DWR Sprays: Fluorocarbon or eco-friendly alternatives bead away water and oil.
• UV Stabilizers: Resin or pigment additives protect fibers from photodegradation, extending outdoor life to 1,000+ hours.
• Flame-Retardant Treatments: Applied for compliance in safety or automotive applications.
• Antimicrobial Coatings: Silver-ion or quaternary ammonium compounds inhibit mold and bacteria in humid environments.

6. Quality Control & Inspection

• Physical Tests: Evaluate tensile strength, tear resistance (ASTM D412), and abrasion resistance (Martindale or Taber).
• Dimensional Checks: Verify basis weight (GSM) and thickness tolerances (±0.2 mm).
• Visual Inspection: Screens for weaving defects, pinholes in coatings, and color consistency.

Why Is Nylon Popular for Bags: Advantages and Disadvantages?

Nylon’s popularity in bags stems from an exceptional strength‐to‐weight ratio, superior abrasion and tear resistance, moisture wicking, and ease of care. Its ability to accept vibrant dyes, prints, and performance finishes (waterproofing, UV protection) makes it endlessly versatile. However, nylon can degrade under UV exposure without treatment, attract oils and stains, and carries an environmental burden as a petroleum‐derived, non‐biodegradable fiber.

Advantages of Nylon for Bags

1. High Strength‐to‐Weight Ratio

• Tensile Strength: Modern nylons (e.g., 420D ripstop) exhibit tensile strengths of 10–12 MPa, outperforming most natural fibers of similar weight.
• Lightweight: At 40–70 g/m² for 210–420 denier plain weaves, nylon provides structural integrity without adding bulk—crucial for daypacks and travel gear.

2. Abrasion & Tear Resistance

• Abrasion Cycles: 420D ripstop withstands 20,000+ Martindale cycles; 1050D ballistic exceeds 50,000 cycles.
• Rip‐Stop Technology: Grid reinforcements stop small tears from propagating, extending product life under rough use.

3. Moisture Management & Quick Dry

• Absorption: Nylon absorbs ~4% of its weight in moisture—allowing sweat or light rain to evaporate quickly.
• Drainage: Uncoated pockets and linings let moisture escape, preventing mildew in gym bags and travel packs.

4. Elasticity & Shape Retention

• Stretch: Nylon stretches 20–30% under load and rebounds >90%, preserving bag shape and pocket elasticity.
• Flex Fatigue Resistance: Tens of thousands of bending cycles without permanent deformation—ideal for straps and foldable designs.

5. Customization & Aesthetics

• Dyeability: Nylon accepts a wide color gamut; digital and sublimation printing yield vibrant, fade‐resistant patterns.
• Finish Compatibility: PU/PVC coatings, DWR sprays, and TPU laminates bond well, adding waterproofing, UV stability, or tactile finishes.

6. Ease of Care

• Washable: Machine‐washable on gentle cycles; line‐dry to preserve coatings.
• Stain Resistance: PU coatings repel many spills; uncoated nylon cleans with mild detergent and a soft brush.

Disadvantages of Nylon for Bags

1. UV Sensitivity

• Photodegradation: Untreated nylon loses up to 50% tensile strength after 200–300 hours of UV exposure.
• Mitigation: UV‐stable finishes add cost and can slightly alter hand feel.

2. Oil & Stain Attraction

• Hydrophilic Nature: While water resists, oils can adhere and darken fibers.
• Cleaning: Requires specialized stain treatments (e.g., solvent‐based cleaners) to fully remove grease.

3. Environmental Impact

• Petroleum‐Derived: Nylon production relies on crude oil and energy‐intensive polymerization, generating significant CO₂.
• End‐of‐Life: Difficult to recycle due to additives and coatings; most nylon ends up in landfills or incinerated.

4. Pilling & Surface Wear

• Low Denier Fabrics: 210D or lightweight weaves can develop surface pilling under friction—diminishing aesthetics over time.
• Solution: Choose higher denier or apply anti‐pilling finishes at the cost of weight.

Comparative Trade‐Offs

Feature	Nylon	Polyester	Cotton
Strength (MPa)	8–12	6–9	3–5
Abrasion (Cycles)	20,000+ (420D)	10,000–15,000	5,000–8,000
Moisture Absorption (%)	~4	<1	7–8
UV Stability (hrs)	200–300 (untreated)	400–600	200–300
Cost ($/m)	2–6	1.5–4	2–5
Sustainability	Low (petro‐based)	Moderate	High (renewable)

• Polyester vs Nylon: Polyester wins on UV stability and cost; nylon excels in strength, stretch, and comfort.
• Cotton vs Nylon: Cotton offers eco‐credentials and natural sheen, but lacks nylon’s durability and quick‐dry benefits.

Mitigating Nylon’s Drawbacks

• Use Recycled Nylon (rNylon): Cuts CO₂ footprint by ~80% and diverts waste from oceans and landfills.
• Apply Eco‐Friendly Finishes: Non‐PFAS DWR and bio‐based PU coatings reduce environmental load.
• Design for Disassembly: Construct bags so nylon panels can be separated from hardware and recycled more easily.

How Do You Care for and Maintain Nylon Bags?

Nylon bags are machine-washable on a gentle cycle using mild detergent; air dry to prevent heat damage. For stains, pre-treat with diluted vinegar or a fabric cleaner. Store in a cool, dry place away from direct sunlight to avoid UV fading. Regular spot-cleaning and proper drying keep nylon bags looking new and performing well for years.

Maintaining nylon’s vibrant colors and performance is straightforward if you follow a few best practices:

1. Cleaning Techniques

Machine Wash vs. Hand Wash:

• Gentle Cycle: Use cold water, mild liquid detergent, and a laundry bag for loose parts (zippers, straps).
• Hand Wash: For delicate trims or coated surfaces—soak in cool water with a mild cleaner, agitate gently, rinse thoroughly.

Stain Removal:

1. Pre-Treat: Spray or dab a mixture of equal parts white vinegar and water on stains; let sit 10 minutes.
2. Spot Cleaning: Use a soft brush or cloth to gently scrub.
3. Rinse: Wipe with damp cloth to remove residue.

2. Drying Best Practices

Air Dry: Hang or lay flat in shaded, well-ventilated area; avoid direct sunlight to prevent UV fade.

Avoid Heat: Never use a dryer—heat can warp coatings, shrink webbings, or weaken adhesives.

3. Storage Recommendations

• Cool, Dry Conditions: Prevent mold and mildew—humidity <60%, temperature 15–25 °C.
• Avoid Compression: Don’t stack heavy items on top to preserve shape and padding.
• Use Dust Bags: For long-term storage, place nylon bags in breathable cotton dust covers to repel dust and pests.

4. Preventing Wear & Tear

• Reinforce Stress Points: Coat seams and edges with a thin bead of flexible seam sealant to reduce fraying.
• Rotate Usage: Alternate bag styles to distribute wear; heavy-duty work bags should rest occasionally.

5. Periodic Inspections

• Hardware Check: Test zippers, buckles, and drawstrings for smooth operation; lubricate zippers with beeswax if sticky.
• Surface Coating Renewal: If your nylon features a DWR finish, re-apply spray-on DWR every 6–12 months, especially after washes.

Are Nylon Fabrics Sustainable and Recyclable?

Traditional nylon is petroleum-based and challenging to recycle, but recycled nylon (rNylon)—made from fishing nets or waste—cuts CO₂ emissions by up to 80%. Certifications like Global Recycle Standard (GRS) and Cradle to Cradle verify eco-credentials. Chemical recycling technologies are emerging to depolymerize nylon back to monomers, paving the way for closed-loop circular economies.

Sustainability in synthetic textiles hinges on material lifecycle and end-of-life solutions. Here’s how nylon is evolving:

1. Environmental Concerns of Virgin Nylon

• Feedstock: Derived from crude oil; energy-intensive polymerization contributes significant greenhouse gas emissions.
• Non-Biodegradable: Closed loops rarely close—discarded nylon often ends up in landfills or incinerators.

2. Recycled Nylon (rNylon) Innovations

• Post-Consumer & Industrial Waste: Old fishing nets, carpet scraps, and textile offcuts are sorted, cleaned, and re-extruded into rNylon yarns.
• CO₂ Reduction: Lifecycle assessments show up to 80% less global warming potential versus virgin nylon production.
• Key Certifications:
  • Global Recycle Standard (GRS): Verifies recycled content and chain-of-custody.
  • Cradle to Cradle (C2C): Assesses material health, reutilization, renewable energy use, water stewardship, and social fairness.

3. Chemical Recycling & Depolymerization

• Emerging Technologies: Companies develop processes to chemically depolymerize nylon back into caprolactam or adipic acid and hexamethylenediamine monomers.
• Scale Challenges: High costs and energy demands currently limit widespread adoption—but pilot programs suggest commercial viability within 5–10 years.

4. Circular Economy & Design Strategies

• Modular Bag Designs: Facilitate component replacement (e.g., straps, linings) without discarding the entire bag.
• Take-Back Programs: Brands collect end-of-life products for recycling or refurbishment—enhancing brand loyalty and sustainability credentials.
• Biobased Nylon Alternatives: Research into monomers from castor oil or corn sugar aims to reduce reliance on petroleum feedstocks.

5. Balancing Performance and Sustainability

Metric	Virgin Nylon	Recycled Nylon (rNylon)
CO₂ Emissions (kg CO₂e/kg)	~7.5	1.5
Water Use (L/kg)	~100	60
Mechanical Properties	Baseline	Comparable
Cost Premium	—	+15–30%

• Interpretation: rNylon offers near-equivalent performance with significantly lower environmental impact, at a modest cost increase—an acceptable trade-off for eco-brands.

6. Szoneier’s Sustainable Nylon Offerings

At Szoneier, we integrate recycled nylon options with competitive pricing and certified supply chains.

• Low-MOQ rNylon Rolls (100 m)
• GRS-Certified Content
• Design for Disassembly in our bag structures to facilitate end-of-life recycling

Ready to Customize Your Next Nylon Bag Collection?

At Szoneier, we leverage over 18 years of expertise in bag R\&D, prototyping, and manufacturing to deliver bespoke nylon products that hit every performance and aesthetic target:

• Fabric Selection: 210D–1050D nylon variants, ripstop, ballistic, coated, or uncoated
• Custom Finishes: PU/PVC laminations, DWR, UV-stable, flame-retardant, or antimicrobial treatments
• Branding & Design: Full-color digital printing, embossing, and bespoke hardware integration
• Low MOQ Sampling: Prototype runs starting at just 50 pieces or 10 meters of fabric
• End-to-End Service: In-house pattern making, rapid sampling (3–7 days), quality control, and packing

Whether you’re developing a lightweight urban tote, a rugged expedition backpack, or a fashion-forward statement bag, our team will guide you through every step—from material specification to final production.

Contact us today to discuss your project requirements, request samples, and secure a personalized quote. Let’s bring your vision to life with the perfect nylon solution!
