How to Make a Waterproof Bag: A Complete Step by Step Guide

Whether you’re an outdoor adventurer kayaking down rapid rivers, a daily commuter cycling through heavy rain, or a brand aiming to launch a line of high-performance bags, one thing is certain — waterproof protection isn’t a luxury, it’s a necessity.

A waterproof bag is far more than a fashion statement. It’s a functional engineering product designed to keep contents completely dry, even in extreme conditions like heavy downpours or full submersion. Unlike water-resistant options, which can only withstand light rain or splashes, waterproof bags use impermeable fabrics, welded seams, and special closures to create a fully sealed environment.

In simple terms: A waterproof bag is a bag designed to completely block water from entering, protecting its contents under conditions where regular bags would leak.

Picture this: you’re on a weekend trek, camera gear packed, the sky turns gray — within minutes, you’re in a downpour. With a regular backpack, your gear is at risk. But with a properly built waterproof bag, you can keep going without worry.

In this guide, you’ll learn exactly how to make a waterproof bag — from choosing materials, designing for maximum protection, to sealing and testing it for performance. We’ll also share insider manufacturing insights from Szoneier, a leading OEM/ODM bag manufacturer with over 18 years of industry experience, supplying global outdoor, travel, and sports brands.

What Is a Waterproof Bag?

A waterproof bag is a carrying product made from impermeable materials and sealed seams, designed to prevent water from entering even under heavy rain or full immersion. Unlike water-resistant bags, they use welded or taped seams and closures like roll-tops or waterproof zippers, ensuring complete protection for the contents.

A waterproof bag isn’t just “a bag that doesn’t leak” — it’s a carefully engineered solution where every material, seam, and closure is chosen for maximum protection.

Name of Waterproof Bags

Waterproof bags come in many forms, often referred to by their specific design or intended use:

• Dry Bag – Roll-top style, common in water sports.
• Waterproof Backpack – Outdoor hiking, commuting, photography.
• Waterproof Duffel – Travel, expeditions, equipment hauling.
• Gear Sack – Smaller storage inside larger luggage.
• Protective Case – Rigid or semi-rigid for electronics.

Waterproof vs Water-Resistant Bags

Feature	Waterproof Bag	Water-Resistant Bag
Material	Fully impermeable (PVC, TPU, Hypalon)	Coated fabrics (polyester, nylon)
Seams	Welded or taped	Stitched, sometimes coated
Closure	Roll-top, waterproof zipper	Regular zipper/flap
Immersion Protection	Yes	No

Waterproof bags are purpose-built for extreme environments, while water-resistant ones are for mild conditions.

What Are the Disadvantages of Waterproof Bags?

• Heavier than non-waterproof alternatives.
• Less breathable (risk of condensation inside).
• More expensive to produce.
• Complex repairs if damaged.

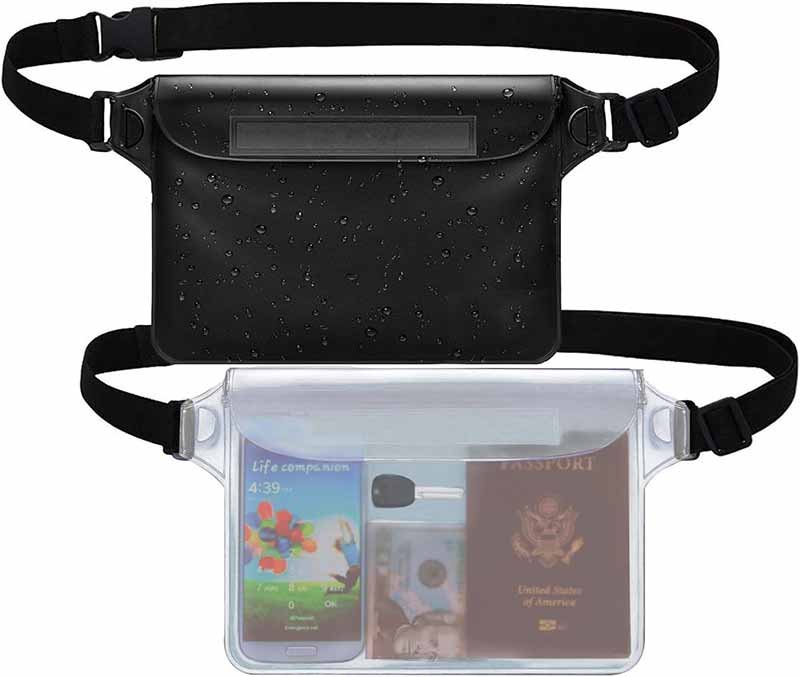

What Material Is Used to Make Waterproof Bags?

The best materials for waterproof bags include PVC-coated polyester, TPU-laminated nylon, Hypalon, neoprene, and treated canvas. Each offers a unique balance of waterproofing, weight, durability, and cost. PVC and TPU excel in long-term water resistance, Hypalon offers extreme UV and chemical resilience, neoprene combines softness with insulation, and treated canvas provides heritage style with moderate water resistance. Your choice should align with performance needs, environmental exposure, and intended market positioning.

Selecting the right material is one of the most important steps in producing a waterproof bag that actually meets end-user expectations. A beautiful design or clever sealing system can fail completely if the fabric itself cannot withstand water pressure, abrasion, or UV exposure over time.

1. PVC-Coated Polyester

Technical Specs:

• Base: Woven polyester (usually 500D–1000D)
• Coating: Polyvinyl chloride on one or both sides
• Waterproof Rating: 5,000–10,000 mm hydrostatic head
• Weight: 350–650 g/m²

Advantages:

• Very durable and abrasion-resistant
• Fully waterproof when welded
• Cost-effective for bulk production
• Excellent for high-volume B2B orders

Limitations:

• Heavier than other options
• Less eco-friendly due to PVC content
• Can become stiff in cold conditions

Best Applications: Marine dry bags, industrial duffels, delivery bags, protective covers.

2. TPU-Laminated Nylon

Technical Specs:

• Base: High-tenacity nylon (often 210D–420D)
• Coating: Thermoplastic polyurethane laminated
• Waterproof Rating: 10,000–20,000 mm hydrostatic head
• Weight: 180–400 g/m²

Advantages:

• Lightweight yet extremely strong
• Flexible even in sub-zero temperatures
• More eco-compliant than PVC (no chlorine)
• High resistance to hydrolysis and abrasion

Limitations:

• Higher raw material cost
• Requires precision seam welding or taping

Best Applications: Premium outdoor backpacks, high-end sports dry bags, foldable waterproof totes.

3. Hypalon (CSM – Chlorosulfonated Polyethylene)

Technical Specs:

• Type: Synthetic rubber
• Waterproof Rating: 15,000 mm+ hydrostatic head
• Weight: 400–700 g/m²

Advantages:

• Exceptional UV and chemical resistance
• Maintains integrity in extreme climates
• Superior abrasion resistance
• Long lifespan (often 10+ years in harsh use)

Limitations:

• Expensive and heavy
• More specialized production process

Best Applications: Military-grade waterproof gear, inflatable boats, expedition packs, tactical duffels.

4. Neoprene

Technical Specs:

• Structure: Closed-cell synthetic rubber
• Waterproof Rating: 3,000–5,000 mm hydrostatic head
• Weight: 1–5 mm thickness (density ~500–900 g/m²)

Advantages:

• Naturally waterproof
• Cushions impacts and insulates temperature
• Soft, premium feel for consumer goods

Limitations:

• Bulkier than woven fabrics
• Not as abrasion-resistant unless laminated with nylon

Best Applications: Cooler bags, electronics sleeves, lifestyle waterproof fashion items.

5. Treated Cotton Canvas

Technical Specs:

• Base: 100% cotton (10–24 oz duck or canvas)
• Treatment: Wax, silicone, or polyurethane coating
• Waterproof Rating: 2,000–5,000 mm hydrostatic head

Advantages:

• Natural look and feel, breathable
• Easy to sew and repair
• Biodegradable base fiber

Limitations:

• Heavier when wet
• Requires periodic reproofing
• Lower waterproofing compared to synthetics

Best Applications: Heritage-style travel bags, daypacks, urban outdoor gear.

Material Comparison Table

Material	Waterproof Rating (mm)	Weight	Flexibility	Durability	UV Resistance	Eco Score
PVC-Coated Polyester	5,000–10,000	Medium	Medium	High	Medium	Low
TPU-Laminated Nylon	10,000–20,000	Light	High	High	Medium-High	Med-High
Hypalon	15,000+	Heavy	Medium	Very High	Very High	Medium
Neoprene	3,000–5,000	Medium	High	Medium	Medium	Low
Treated Canvas	2,000–5,000	Heavy	Low	Medium	Low	Medium

Szoneier’s Professional Sourcing Tips

1. Match Material to Market Position
   • For mass-market, cost-sensitive products → PVC-coated polyester
   • For premium brands → TPU-laminated nylon or Hypalon
2. Consider Regional Climate
   • Tropical or marine use → Hypalon or TPU for anti-UV and anti-mold properties
   • Cold climate → TPU (remains flexible)
3. Factor in Manufacturing Method
   • Heat welding → PVC or TPU
   • Sewing + seam taping → Treated canvas, TPU-laminated fabrics
4. Eco Compliance
   • If targeting EU/California markets, ensure REACH and Prop 65 compliance. TPU is generally safer than PVC for this.

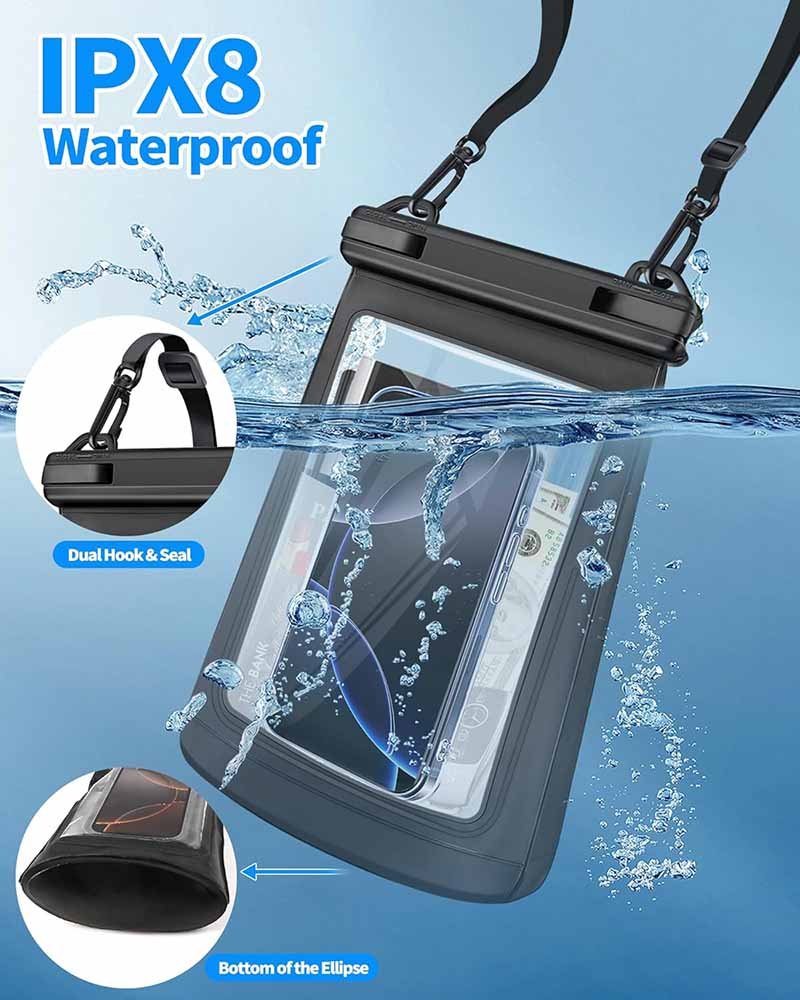

How to Design for Waterproofing?

Designing for waterproofing requires combining the right materials, sealing methods, and structural details to prevent water ingress. Key strategies include using high-hydrostatic-head fabrics, welded or taped seams, waterproof zippers, roll-top or storm flap closures, and reinforced stress points. Every design choice—from stitch type to panel layout—affects long-term performance. A successful waterproof bag balances functionality, weight, durability, and user convenience without compromising on the sealing integrity.

When you’re designing a waterproof bag, you’re essentially engineering a barrier between your customer’s valuables and the outside environment. This isn’t just about keeping out a light drizzle—it’s about ensuring the product performs under real-world conditions: sudden downpours, heavy splashes, and even submersion in some cases.

1. Start with a Purpose-Driven Design Brief

Before opening CAD software or cutting fabric samples, you must define:

• End Use: Commuting, hiking, fishing, kayaking, tactical missions, etc.
• Waterproof Level: Water-resistant (light rain) vs. fully waterproof (immersion-safe).
• Market Segment: Mass market, premium outdoor, military, or fashion-lifestyle.
• Durability vs. Weight: Heavy-duty expedition gear will differ from ultralight travel bags.

Example:

Use Case	Hydrostatic Head Target	Typical Weight Range
Commuter Backpacks	3,000–5,000 mm	500–800 g
Dry Bags for Kayak	10,000–20,000 mm	800–1,200 g
Military Gear	15,000 mm+	1,000–1,500 g

2. Choose a Waterproofing Strategy

A. Fabric-Based Waterproofing

• TPU-Laminated Nylon → Lightweight & high-performance
• PVC-Coated Polyester → Rugged & cost-effective
• Hypalon → Premium durability & UV resistance

B. Construction-Based Waterproofing

• Seam Sealing: Heat welding, seam taping, liquid seam sealers.
• Closure Systems: Roll-top seals, waterproof zippers, double storm flaps.

C. Hybrid Approach

• Use waterproof fabric + welded seams for high-water-pressure environments.

3. Seam Engineering: The Weakest Link

Seams are the number one entry point for water. To address this:

• Heat Welding: Bonds panels with no needle holes—ideal for PVC/TPU.
• Seam Taping: Covers stitching holes—suitable for nylon/canvas builds.
• Ultrasonic Welding: High precision for thin technical fabrics.

Tip: In Szoneier’s manufacturing lines, we always match seam method to fabric thickness and flexibility, ensuring no compromise on the seam’s waterproof integrity.

4. Zippers and Closures Matter

Even with perfect fabric and seams, a poor closure will cause leaks. Options include:

• YKK Aquaguard Zippers → Water-repellent, ideal for urban waterproof packs.
• DrySuit-Style Zippers → 100% waterproof, for marine/tactical use.
• Roll-Top Closures → Affordable and highly effective for dry bags.
• Magnetic Seal Flaps → Sleek and fast, but typically for light rainproofing only.

5. Minimize Penetrations and Weak Points

Design with as few seams and punctures as possible.

• Use laser cutting to shape panels without fraying edges.
• Integrate molded anchor points for straps instead of sewn-on tabs in high-risk areas.
• Route cables or hydration hoses through sealed ports rather than open holes.

6. Prototype and Test Early

Even the most experienced designers get surprises during testing.

• Lab Testing: Hydrostatic head tests, immersion tests, and abrasion cycles.
• Field Testing: Real-world use in intended environments.
• Customer Feedback: Collect from beta users to identify comfort, weight, and usability trade-offs.

Testing Example Table:

Test Type	Standard	Pass Criteria
Hydrostatic Head	ISO 811	≥ Target mm rating
Seam Leak Test	ASTM D751	No leaks after 5 min
UV Resistance	ASTM G154	No significant fading/crack
Abrasion Resistance	Martindale > 20,000	No coating delamination

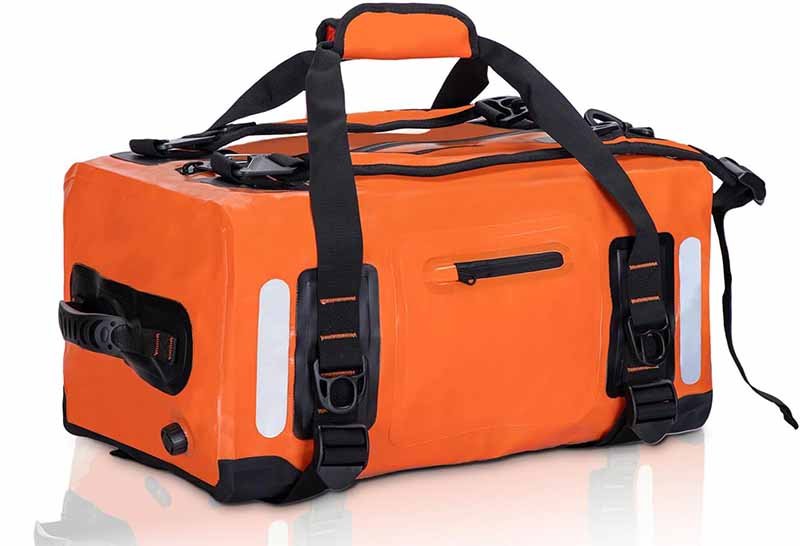

What Tools and Supplies Do You Need?

Making a waterproof bag requires specialized tools and supplies to ensure sealing integrity. Essential tools include heat welders, seam taping machines, industrial sewing machines, and cutting equipment. Supplies range from waterproof fabrics (TPU, PVC, vinyl) to seam tape, waterproof zippers, and closure hardware. Selecting the right tools depends on your chosen waterproofing method—welding, taping, or coating—and your production volume. The right setup ensures durability, leak prevention, and consistent quality across every batch.

Whether you’re a DIY enthusiast making a one-off dry bag or a manufacturer producing thousands of waterproof backpacks, the right tools and materials determine your success. Without them, even premium fabrics can fail in real-world rain or immersion tests. Below, we break down what you need for professional-grade waterproof bag production.

1. Fabric Cutting & Preparation Tools

Before sealing anything, panels must be cut precisely.

• Rotary Cutters & Cutting Mats → Ideal for small runs.
• Laser Cutters → Precision edges, minimal fray, high efficiency for bulk production.
• Die-Cutting Machines → Perfect for repeat shapes and high-volume runs.
• Hot Knife Cutters → Seal edges of synthetic fabrics to prevent fraying.

Szoneier Tip: We often use CNC fabric cutters to ensure pattern accuracy, reducing waste by up to 15% in large orders.

2. Waterproof Fabric & Coating Supplies

Your waterproof barrier starts here.

• TPU-Laminated Nylon/Polyester → Lightweight, flexible, high hydrostatic head.
• PVC-Coated Polyester → Rugged and affordable.
• Vinyl & Hypalon → For marine and military-grade waterproofing.
• Silicone-Coated Fabrics → Ultralight and water-shedding for specialty bags.

Fabric Selection Chart

Fabric Type	Waterproof Rating (mm)	Durability Level	Typical Use Cases
TPU Nylon	5,000–20,000	Medium-High	Hiking, cycling, dry bags
PVC Polyester	10,000–15,000	High	Tool bags, cooler bags
Hypalon	15,000+	Very High	Military, marine gear
Silicone Nylon	3,000–5,000	Medium	Ultralight trekking packs

3. Seam Sealing Equipment

Waterproof seams are critical to performance.

• Hot Air Welders → Join panels without needle holes.
• RF (Radio Frequency) Welders → Ideal for thick coated fabrics.
• Seam Taping Machines → Apply seam tape to stitched seams.
• Liquid Seam Sealers → Brush-on sealants for low-volume or DIY builds.

Szoneier Note: For premium outdoor gear, we use 3-layer seam tape that can withstand 500+ wash cycles without peeling.

4. Industrial Sewing Machines (If Stitching)

Even waterproof bags sometimes require stitching for handles, pockets, or reinforcements.

• Walking Foot Sewing Machines → Feed thick or sticky coated fabrics evenly.
• Post Bed Machines → Ideal for attaching handles and 3D parts.
• Needle Sealants → Seal needle holes when stitching waterproof areas.

5. Closure & Hardware Supplies

These keep water out while allowing convenient access.

• Waterproof Zippers (e.g., YKK Aquaguard, TIZIP)
• Roll-Top Buckles & Clips
• Magnetic Seals & Velcro Storm Flaps
• Drain Plugs (for cooler or marine bags)

Closure Type Comparison

Closure Type	Waterproof Level	Cost Range	Typical Bags
Roll-Top	Excellent	Low	Dry bags, kayak gear
Waterproof Zipper	Excellent	High	Travel packs, marine use
Storm Flap + Zip	Good	Medium	Hiking & commuter packs

6. Adhesives & Sealants

For bonding fabrics or sealing micro-gaps.

• PU Adhesives → Flexible, waterproof, great for TPU/PVC fabrics.
• Contact Cement → Strong, quick-bonding for edge reinforcements.
• Silicone Sealants → Flexible, heat-resistant, and water-repellent.

7. Testing Tools

No production run should leave without QC checks.

• Hydrostatic Head Tester → Measures waterproof rating of fabric.
• Leak Detection Tank → Submersion test for finished bags.
• Abrasion Tester → Ensures coatings don’t wear prematurely.

Step-by-Step Making Process

Design is theory; process is proof. The sequence below turns premium fabrics and a clever pattern into a bag that stays dry in real weather—not just the sample room. Treat each step as a quality gate, with measurable checks before moving on.

Cutting and Preparing Fabric Panels

Goal: clean, dimensionally accurate panels with edges ready for sealing.

1. Nest & mark

• Use CAD nesting to minimize waste and align grain/warp for strength.
• Mark fold lines, weld allowances (usually 10–18 mm), and no-stitch zones.

1. Cut

• Small runs: rotary cutter + hot knife to lightly melt edges on synthetics.
• Volume: CNC or laser cutting for ±0.5 mm tolerance and sealed edges.

1. Surface prep

• Wipe weld areas with isopropyl alcohol (≥70%) to remove oil/dust.
• For TPU/PVC, lightly abrade glossy coatings only if specified to improve bond.

1. Pre-fit

• Dry fit panels with low-tack clips (never pins) to avoid holes in the barrier.
• Confirm alignment around high-stress corners and 3D pockets.

Checkpoint: diagonal measurements match within ±2 mm; weld allowances continuous; no frayed or contaminated edges.

Sealing Seams and Edges

Goal: turn panel edges into a continuous, watertight membrane.

RF welding (PVC/TPU)

• Uses radio frequency to fuse coatings through the thickness.
• Produces strong, clean seams on coated synthetics and Hypalon patches.

Hot-air welding

• Directs heated air between layers; a pressure roller consolidates the bond.
• Great for long straight seams and roll-top tubes.

Stitch-and-tape (for sewn builds)

• Use a walking-foot machine; longer stitches (3.5–4.5 mm) reduce perforations.
• Immediately cover with compatible seam tape using hot-air tape machine.

Typical process window:

Material	Method	Nozzle/Die Temp	Line Speed	Pressure/Roller
PVC-coated polyester (500D)	Hot-air weld	360–430 °C	3–6 m/min	Firm, 2–4 bar equiv
TPU-laminated nylon (420D)	Hot-air/RF	320–380 °C	2–4 m/min	Medium-firm
Hypalon (CSM) patches	RF/adhesive	—	—	Press per spec
Sewn nylon + seam tape	Tape machine	250–320 °C	3–5 m/min	Consistent contact

Edge finishing: cap ends with weldable binding or inside hem welds; radius sharp corners (≥6 mm) to prevent stress-tears.

Checkpoint: continuous bond line, no pinholes, no tunneling or fish-mouths; peel test on coupons ≥ the fabric tear strength.

How to Seal a Waterproof Bag? (Methods & fixes)

1. RF welding

• Best structural seams, complex 3D joins with custom tooling.
• Common defects: incomplete fusion (cold weld), fabric scorching.
• Fix: raise dwell/pressure incrementally; ensure even clamp pressure.

1. Hot-air welding

• Long seams & roll-top tubes.
• Defects: channeling (air tracks), skipped sections at overlaps.
• Fix: slow line speed; use guide fences; keep overlap constant (10–15 mm).

1. Stitch-and-tape

• For designs that need sewing (pockets/straps).
• Defects: tape lift after flexing, needle leaks.
• Fix: verify tape chemistry; increase nip pressure; use needle sealant in critical zones.

1. Adhesive bonding (PU contact/2K)

• For patch-on reinforcements, zipper garages.
• Defects: edge peel, creep in heat.
• Fix: control open time; roughen bond area; post-press to set.

Adding Waterproof Closures

Roll-top systems

• Fold line scored lightly; add 3–4 tight rolls before buckling.
• Reinforce the mouth with a stiffener strip (TPU/PVC) to help roll quality.
• Side or top buckle placements: side buckles compress the cylinder; top buckles create a carry handle.

Waterproof zippers

• Choices: YKK Aquaseal/TIZIP (fully waterproof) or Aquaguard (highly water-repellent for urban packs).
• Install on a raised welt to keep the seam away from standing water; add a zipper garage at the end stop.
• Lube with silicone-safe grease; never crease in shipping.

Magnetic/Velcro storm flaps

• Secondary barriers over zippers; not immersion-rated alone but excellent for spray and driving rain.

Hardware integration without leaks

• Use weld-through anchors or laminated tabs instead of sewing through the body.
• If sewing is unavoidable, isolate with internal patch + seam tape “picture frame.”

Quick selection table

Use Case	Closure	Notes
Kayak/SUP dry bag	Roll-top	3–4 rolls + side buckles
Commuter backpack	Aquaguard + flap	Fast access, rain-safe
Marine/expedition	TIZIP/Aquaseal	Immersion capable; maintain/lubricate
Camera shell	Zipper + gasket	Add foam frame to protect optics

Testing for Water Tightness (QC & validation)

In-process:

• Air leak test: seal bag, introduce low pressure (e.g., 3–5 kPa), spray soapy water along seams; bubbles = leaks.
• Peel/Shear coupons: weld sample strips every hour; record force.

Final inspection:

• Shower/spray test: 5–10 minutes at \~70–90 L/h, check interior.
• Static immersion: submerge 30 minutes at 10–20 cm depth; inspect for ingress.
• Ingress grading:
  • Grade A: 0 drops
  • Grade B: ≤5 drops localized
  • Fail: pooled water or wicking

Documentation: lot traceability, machine settings, operator ID, and test photos. This protects your brand and speeds root-cause analysis.

Common leaks & quick fixes

Symptom	Likely Cause	Remedy
Micro-drips along seam start	Cold start / short dwell	Extend pre-heat/dwell; add lead-in tab
Water track at overlap edge	Inconsistent overlap width	Use seam guides; standardize 12–15 mm
Zipper end seepage	Missing garage/end seal	Add welded garage; reseal end stop
Tape lift after flexing	Wrong tape chemistry/pressure	Switch tape; raise nip pressure/temperature

Final Finishing & Packaging (without compromising waterproofing)

• Trim & edge dress: round external corners; remove sharp tag ends.
• Attach straps/hardware: prefer welded anchors; if stitched, isolate with patches and tape.
• Branding: screen print or HF-emboss on non-critical zones; avoid crossing primary seams.
• Care leaflet: include rolling instructions, zipper lube note, and UV/storage advice.
• Pack flat, not folded across welds; avoid tight creases—use tissue interleave for coated fabrics.

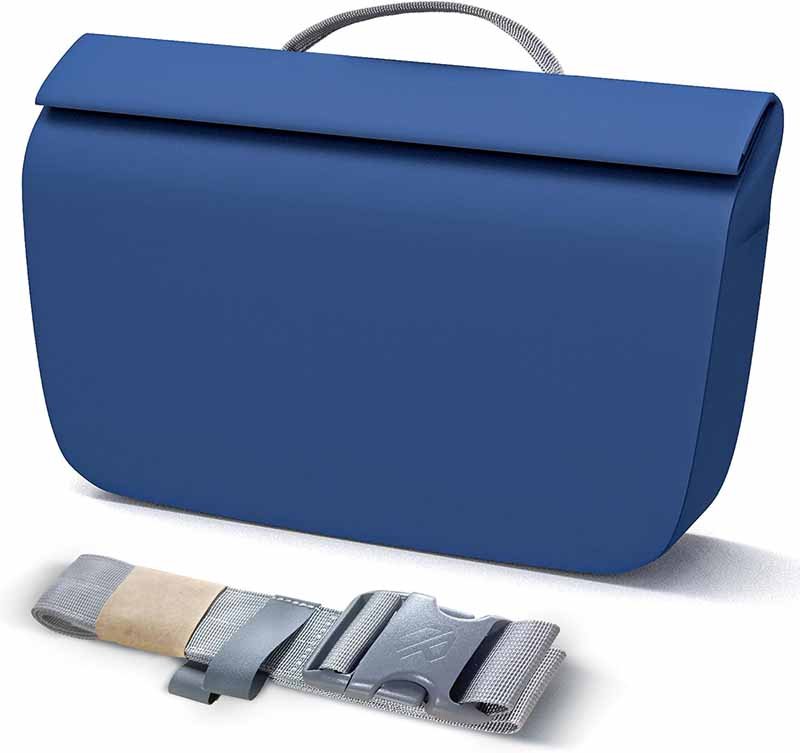

How to Test and Maintain Your Waterproof Bags

To ensure your waterproof bag stays reliably dry, conduct regular leak tests—like air pressure with soapy water, spray/shower simulations, or immersion checks—especially before critical use. Maintenance means keeping zippers lubricated, seams clean, and fabrics free of UV or chemical damage. Store bags loosely in a cool, dry place to avoid creasing welds. Routine inspection and minor repairs can extend a bag’s life by years while preserving its waterproof performance.

Testing and maintenance are the lifeline of a waterproof bag. Even the best build can degrade from abrasion, UV exposure, or careless storage. Whether you’re an outdoor brand, a retailer, or a frequent adventurer, a proactive routine ensures you’re not caught with gear that leaks when it matters most.

Why Testing Matters Before Each Use

Even if your bag was perfect when new, materials and seals are not immune to time. TPU layers can hydrolyze, seam tape can lift, and closures can deform. A quick test before a big trip or product shipment can prevent gear failure, returns, and reputational damage.

Test Type	Best For	Frequency	Tools Needed
Air pressure + soapy water	Pinpointing micro-leaks in seams & welds	Before long trips	Pump, pressure gauge, spray
Spray/shower test	Simulating heavy rain	Seasonal check	Hose/shower head
Immersion test	Submersion readiness	High-risk use	Tub/tank
UV inspection	Spotting fabric degradation	Annual	UV flashlight

Step-by-Step Leak Testing Methods

1. Air Pressure Method (fast, pinpoint)

• Seal bag, inflate gently to 3–5 kPa.
• Spray soapy water on seams and closures.
• Bubbles indicate leaks; mark for repair.

1. Spray/Shower Simulation (realistic rain scenario)

• Fill bag with dry tissue or absorbent paper.
• Spray evenly for 5–10 minutes at varied angles.
• Check paper for dampness.

1. Immersion Test (for expedition-grade bags)

• Submerge loaded bag for 30 minutes at 10–20 cm depth.
• Press lightly to mimic water pressure.
• Any ingress = immediate fix needed.

Preventive Maintenance Routine

Closures

• Roll-tops: ensure clean folds; replace stiffening strips if warped.
• Waterproof zippers: lubricate with silicone-safe grease every 2–3 months; never store bent.

Seams & Coatings

• Wipe with mild soap + lukewarm water after trips.
• Avoid harsh detergents, bleach, or solvent cleaners.
• Check seam tape edges for lifting; press back with moderate heat if possible.

Hardware & Attachments

• Inspect buckles, D-rings, and welded tabs for cracks or delamination.
• Replace damaged parts promptly to prevent stress on waterproof seams.

Storage for Longevity

• Dry thoroughly before storage to prevent mildew.
• Store flat or loosely rolled—never sharply folded—to avoid weld cracks.
• Keep in a cool, shaded place away from direct sunlight and ozone sources (e.g., near motors).
• For seasonal storage, insert silica gel packs to absorb residual moisture.

Common Maintenance Mistakes to Avoid

1. Overstuffing: stretches seams, weakens welds.
2. Machine washing: can break seam tape or coating layers.
3. Chemical exposure: sunscreen, bug spray, and fuel degrade waterproof membranes.
4. Neglecting inspection: small leaks become irreparable over time.

Repairing Minor Damage

Damage Type	Repair Method	Tools/Supplies Needed
Small punctures (<5 mm)	Weld-on patch or TPU repair tape	Patch kit, roller
Seam tape lift	Reheat with seam sealer or household iron	Protective sheet, seam tape
Zipper tooth misalign	Replace slider or lubricate	Replacement slider, grease
Roll-top delamination	Re-bond with PU adhesive	PU glue, clamp

Which Types of Waterproof Bags Are Popular?

Popular waterproof bags include dry bags, waterproof backpacks, duffels, kayak deck bags, waterproof pouches, and hard protective cases. They differ in shape, closure systems, materials, and intended activities. From lightweight phone pouches for beach days to expedition-grade duffels for extreme travel, each type serves a unique purpose. Choosing the right bag depends on activity type, gear volume, and environmental conditions.

1. Dry Bags — The Versatile Waterproof Workhorse

• Best For: Kayaking, rafting, paddleboarding, fishing, camping.
• Design: Cylindrical or oval shape with a roll-top closure and buckle clip that creates a watertight seal when rolled at least 3–5 times.
• Capacity Range: 5L (phones & snacks) to 60L+ (multi-day gear).
• Material: Heavy-duty PVC tarpaulin, TPU-coated nylon, or welded seams for total water isolation.
• Why Popular: Affordable, lightweight, and simple to use; can float when sealed properly.
• Tip: Many pro guides recommend packing small dry bags by category (e.g., cooking gear, clothes) for easy access and better load balance.

2. Waterproof Backpacks — All-Weather Commuter & Outdoor Companion

• Best For: Hiking, motorcycle touring, bicycle commuting, city travel in wet climates.
• Design: Standard backpack silhouette with roll-top, waterproof zipper, or hybrid closure systems; often with padded straps and breathable back panels.
• Capacity Range: 15L–35L for day trips; larger expedition models available.
• Material: TPU-laminated nylon, polyester, or Hypalon—balancing abrasion resistance with flexibility.
• Why Popular: Hands-free transport, compartment organization, and comfort.
• Market Insight: A 2024 outdoor retail survey found waterproof backpacks accounted for 42% of all waterproof bag sales in urban markets due to their crossover appeal between outdoor sports and daily commuting.

3. Waterproof Duffel Bags — Rugged Expedition Haulers

• Best For: Overlanding, camping road trips, long-distance motorcycle rides, sailing.
• Design: Large horizontal load space, sometimes with multiple compartments; closure options include heavy-duty waterproof zippers or roll-top ends.
• Capacity Range: 40L–120L+.
• Material: PVC tarpaulin, laminated nylon, or TPU for extreme durability.
• Why Popular: Can store large or awkwardly shaped gear (e.g., boots, sleeping bags).
• Bonus Feature: Some models convert into backpacks for easier carry.
• Tip: Look for compression straps to stabilize gear during movement, especially in off-road or marine environments.

4. Kayak & Deck Bags — Marine Environment Specialists

• Best For: Sea kayaking, SUP touring, canoeing, sailing.
• Design: Low-profile, hydrodynamic shape designed to strap securely to a deck; typically features quick-access zippers or roll-tops.
• Capacity Range: 10L–30L.
• Material: UV-resistant TPU-coated nylon or heavy-duty marine-grade PVC.
• Why Popular: Keeps essentials within arm’s reach while minimizing water resistance.
• Safety Note: Bright or reflective colors improve visibility in low-light or busy waterways.

5. Waterproof Pouches — Small but Essential

• Best For: Beach vacations, festivals, daily city use in rainy weather.
• Design: Flat or gusseted small bags with zip-lock, magnetic seal, or fold-over clip closures.
• Capacity Range: 0.5L–3L.
• Material: Clear TPU, PVC, or vinyl for visibility of contents.
• Why Popular: Affordable, ultra-lightweight, and fits in a pocket or larger bag.
• Market Data: In global e-commerce, phone-sized waterproof pouches outsell larger waterproof bags by unit volume due to impulse purchases before trips.

6. Specialized Hard-Shell Waterproof Cases

• Best For: Cameras, drones, scientific equipment, medical kits.
• Design: Rigid structure with O-ring sealed lids, often lockable and shockproof.
• Capacity Range: Custom dimensions for gear fit.
• Material: Injection-molded polypropylene, ABS plastic, or composite resin.
• Why Popular: Offers the highest level of water, dust, and impact protection.
• Tip: Pelican-style cases with pressure equalization valves prevent vacuum sealing issues at altitude.

7. Hybrid Waterproof Gear Bags

• Best For: Travelers needing versatile packing—mix between backpack and duffel.
• Design: Convertible straps, semi-rigid base, combination of waterproof fabric and zippers.
• Capacity Range: 25L–70L.
• Why Popular: Multi-use flexibility; ideal for those who want one bag for land, sea, and air travel.

Quick Comparison Table

Bag Type	Ideal Use Case	Closure Type	Typical Capacity	Avg. Weight	Durability Rating
Dry Bag	Kayaking, rafting, camping	Roll-top	5–60L	Light	High
Waterproof Backpack	Hiking, commuting	Roll-top/zip	15–35L	Medium	High
Waterproof Duffel	Overlanding, sailing	Zipper/roll-top	40–120L	Heavy	Very High
Kayak Deck Bag	SUP, marine sports	Roll-top/zip	10–30L	Light	High
Waterproof Pouch	Beach, daily valuables	Zip-lock/magnetic	0.5–3L	Very Light	Medium
Hard-Shell Case	Camera/drone protection	O-ring latch	Custom	Heavy	Very High
Hybrid Gear Bag	Travel/multi-sport use	Combo closure	25–70L	Medium	High

Szoneier OEM/ODM Insight

At Szoneier, over 50% of waterproof bag bulk orders come from backpacks and duffels, 35% from dry bags, and 15% from niche categories like kayak deck bags or hard cases. Clients often request:

• Pantone-matched colors to align with brand identity.
• Custom logo printing or embossing for promotional use.
• Tailored strap systems for ergonomic comfort.
• Eco-material upgrades like recycled TPU-coated fabrics for sustainable branding.

Conclusion

At Szoneier, we’ve perfected waterproof bag manufacturing over 18 years, offering custom OEM/ODM solutions for global brands. From material selection to seam welding and custom branding, we help create products that excel in the toughest conditions.

Contact us today for free design support, low MOQ production, and rapid sampling and bring your waterproof dry bag concept to life with expert craftsmanship and guaranteed quality.
